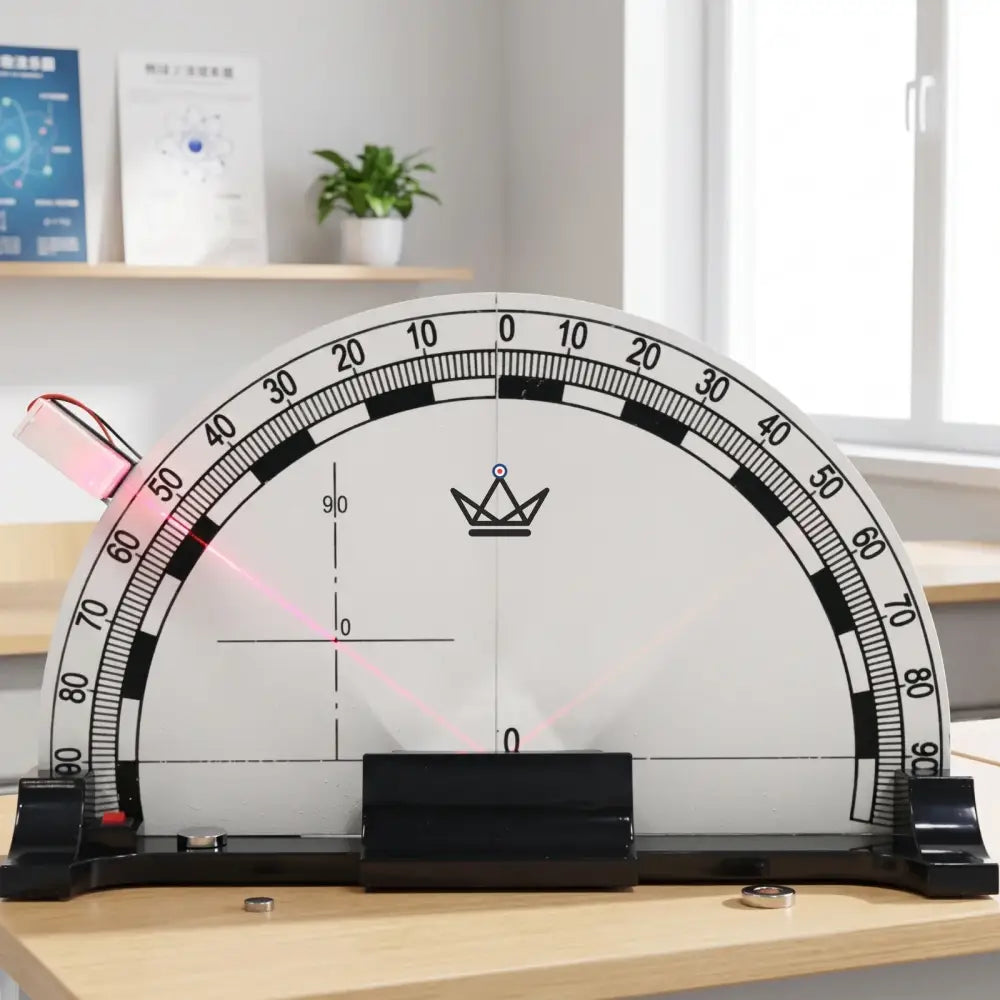

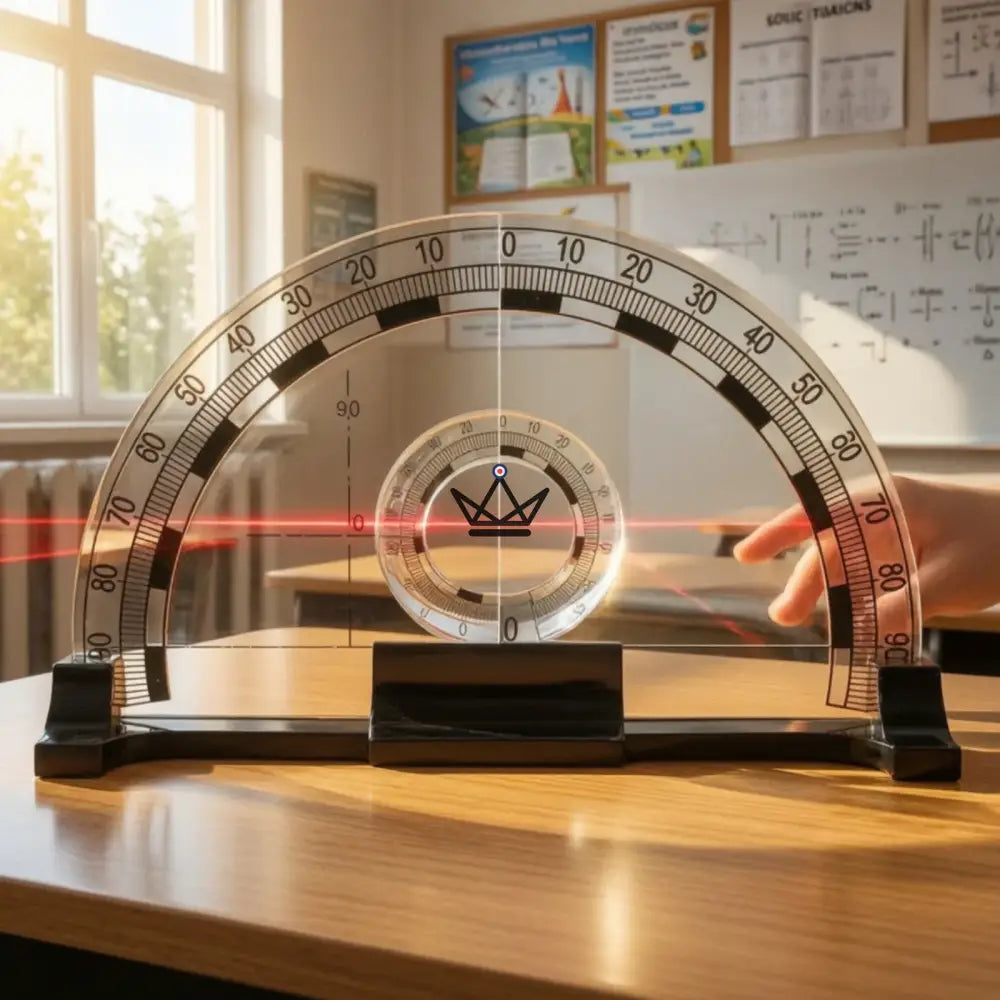

The Lab Optics A ray of light strikes a transparent block: one part bounces back, the other dives in while changing direction. This reflection and refraction demonstrator makes this double behavior measurable at a glance. It combines a white disk graduated in degrees, from 0 to 90 on either side of the axis, mounted on a black base, and a transparent semi-cylindrical lens placed at its center. Direct a thin beam toward the center of the disk: the graduation allows you to read the angle of incidence, the reflected angle, and the refracted angle directly. By rotating the source, one can verify the equality of reflection angles, rediscover the Snell-Descartes law, and then witness the moment the beam no longer emerges: total internal reflection, the principle behind fiber optics. Designed as educational optics equipment, it outfits both classrooms and the desk of any science enthusiast. Important: it is presented as the demonstration board; the light source is not stated to be included.
What the demonstrator shows
Reflection, refraction, and total reflection
When a light ray encounters the surface separating two transparent media, it divides. One part is reflected at an angle equal to the angle of incidence, like a ball bouncing off a wall. The other part is refracted: it crosses the surface while changing direction because light does not travel at the same speed in air as in a transparent material. The relationship between the two angles, n₁·sin i₁ = n₂·sin i₂, was described in the early 17th century by Willebrord Snell and then published by René Descartes in 1637: it is called the Snell-Descartes law in France.
The semi-cylindrical shape is not a coincidence. A ray directed toward the center crosses the curved face without being deflected, as it arrives perpendicular to it; all deflection occurs on the flat face, at the center of the graduated disk, where the angles are read. When light passes from the material into the air and the angle exceeds a critical value, no ray emerges: this is total internal reflection, which guides light in fiber optics.
Why you will love it
Light caught in the act
Since antiquity, it has been noted that a stick dipped in water appears broken. Ptolemy attempted to measure this break, Ibn Sahl described it in the 10th century, and Snell and Descartes provided the law. This demonstrator condenses centuries of research into a simple object: a graduated dial, a transparent block, a beam.

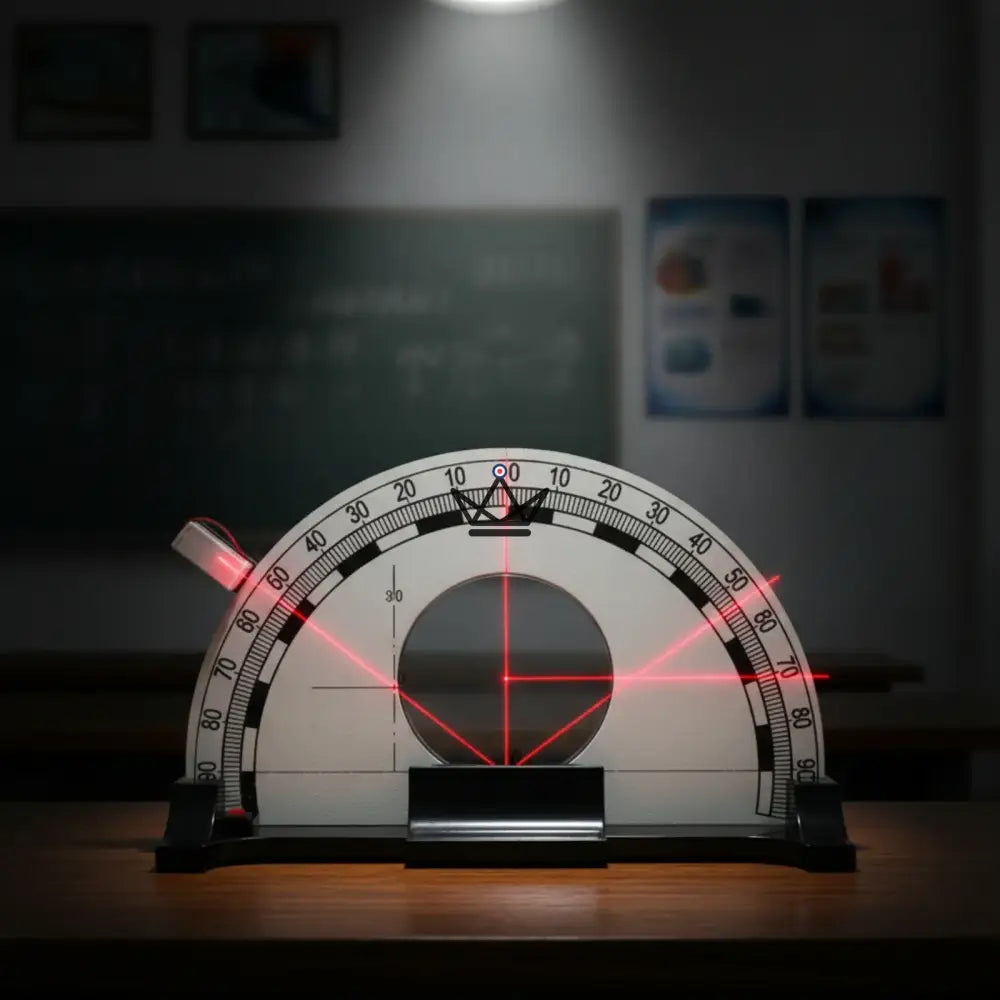

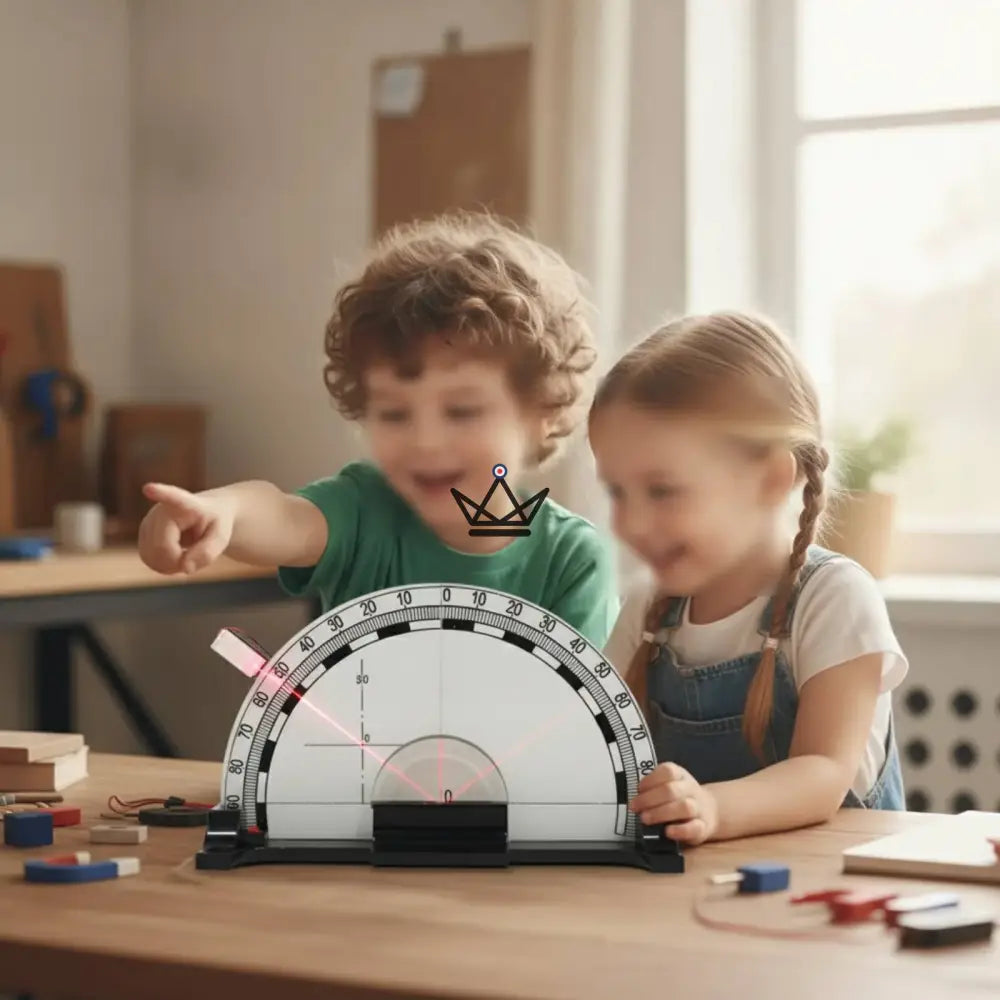

In the dim light, when the red ray splits at the center of the disk, the magic happens. You see the reflected line depart symmetrically, the refracted line bend, and then, with a slight movement of the source, the transmitted beam vanish and all the light bounce back inside the block. This is the same phenomenon that makes cut stones sparkle and transports our data across the oceans. A demonstration that remains etched in memories much more than a formula copied off a chalkboard.
Performing the experiment in four steps

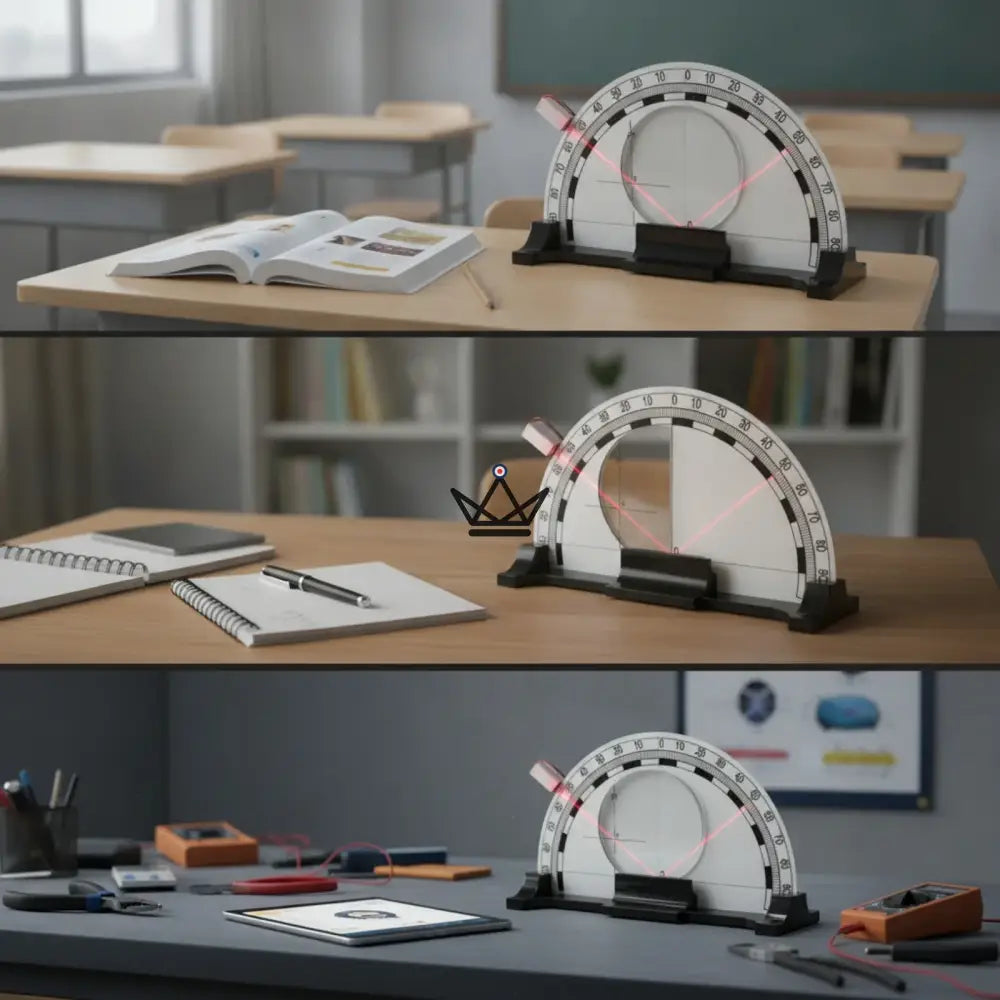

Comparison: three phenomena, one demonstrator
| Phenomenon | What is observed | What is measured |
|---|---|---|
| Reflection | The ray bounces off the flat face | Reflected angle equal to angle of incidence |
| Refraction (air to block) | The ray approaches the normal upon entering | Ratio of sines, therefore the block index |
| Refraction (block to air) | The ray moves away from the normal upon exiting | Verification of the law in the other direction |
| Total reflection | No more ray emerges, everything is reflected | Critical angle specific to the material |
| Concrete application | Fiber optics, sparkle of cut stones | Relationship between index and critical angle |
Fascinated by light? Our light and levitation universe gathers plasma lamps, mirror cubes, and luminous objects that extend the experience.

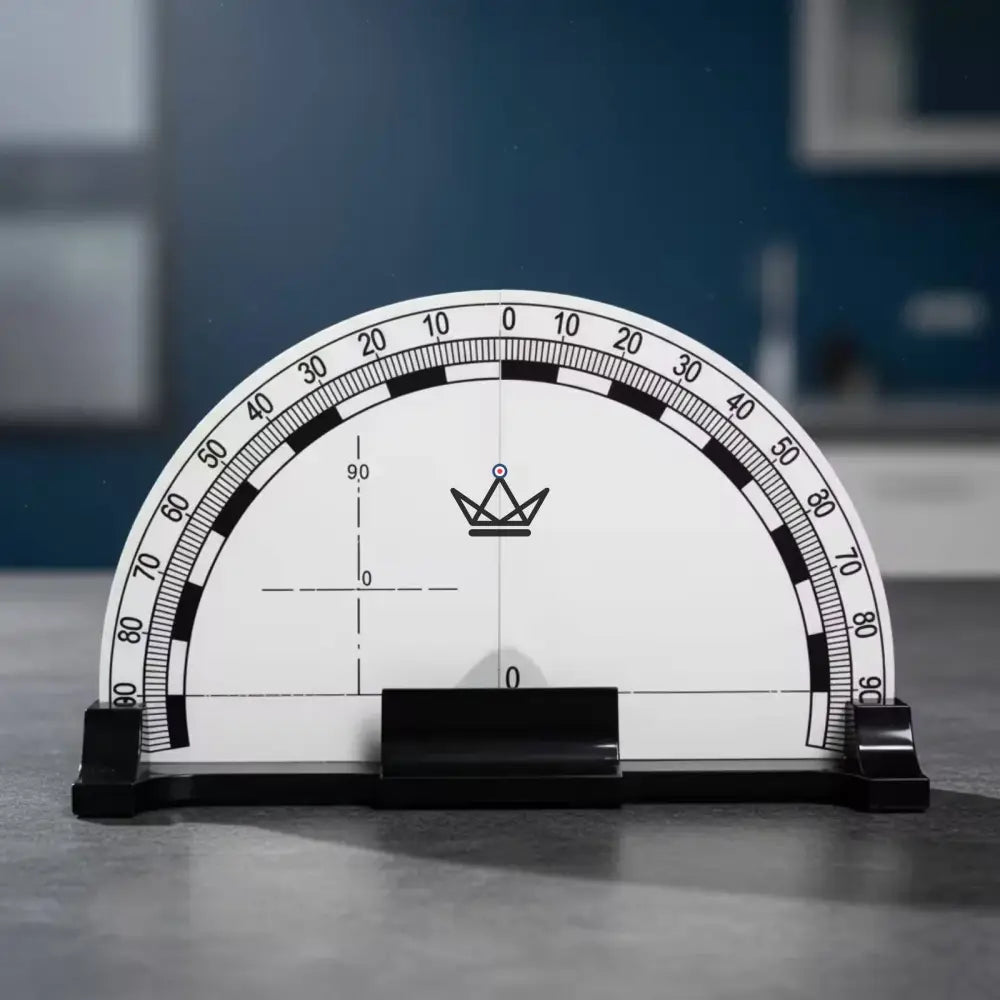

Good to know: the demonstrator is presented as the optical board (graduated disk, base, and lens). The light source is not stated to be included; plan to use a thin beam. The manufacturer mentions a back designed for wall mounting, without specifying its exact mode.
Tip: for a beam that is clearly visible throughout its length, have it graze the white surface of the disk rather than aiming above it. A dimmed room, without total darkness, offers the best compromise between beam visibility and reading the graduations.
Technical specifications
| Type | Reflection and refraction demonstrator |
| Dial | Semicircular white disk graduated in degrees |
| Graduation | 0 to 90° on either side of the axis |
| Optical element | Transparent semi-cylindrical lens |
| Support | Black base |
| Mounting | Back designed for boards according to the manufacturer (exact mode not specified) |
| Light source | Not stated to be included |
| Demonstrated phenomena | Reflection, refraction, total reflection |
| Illustrated law | Snell-Descartes |
| Usage | Optics teaching, scientific desk object |
| Dimensions | Not communicated |
| Weight | Not communicated |
Precautions: if you use a laser pointer, never direct the beam toward eyes, neither directly nor via a reflective surface: the flat face of the lens reflects part of the light. Consider reflected rays when placing spectators. The lens is a small part: keep out of reach of children under 3; with students, the experiment should be conducted under adult supervision.
A luminous gift for the curious
For a physics-chemistry teacher wishing to enrich their lab, an optics student, a photographer passionate about light, or a teenager constantly asking questions about the world, this demonstrator is an intelligent and durable gift.
Pair it with other finds from our Lab scientific objects or an object from office and high-tech to compose a complete gift.
Frequently asked questions
Is the laser source provided?
It is not stated to be included. The presentation photos show the demonstrator in action with a red beam, but the manufacturer does not confirm the presence of a light source in the package, and the product is presented as the demonstration board: graduated disk, base, and semi-cylindrical lens. Therefore, plan for a source producing a thin beam, such as a low-power laser pointer or a slit lantern. If you need confirmation before your purchase, write to us: we will reply with the information we have regarding the exact contents.
Why is the lens semi-cylindrical?
This shape greatly simplifies measurement. A ray directed toward the center of the disk meets the curved face of the lens perpendicularly: it crosses it without changing direction. All deflection therefore occurs on the flat face, exactly at the center of the graduation, where the angles are read. This allows for studying refraction in both directions: from air to the block by entering through the flat face, or from the block to air by entering through the curved face. It is this second configuration that allows for observing total reflection beyond the critical angle.
What is total reflection and how can it be observed?
When light passes from a more refractive medium, such as the transparent block, to a less refractive medium, such as air, the refracted ray moves away from the normal. As the angle of incidence increases, it moves further away until it grazes the surface. Beyond this critical angle, no more light emerges: the entire beam is reflected inside the block. To observe it, have the ray enter through the curved face while aiming for the center, then gradually rotate the source. This is the principle that guides light in fiber optics and gives cut stones their sparkle.
Can the refractive index of the lens be measured?
Yes, it is even one of the most classic experiments. Have the beam enter through the flat face at several angles of incidence, for example 20, 40, and 60 degrees, and record the refracted angle on the graduation each time. The Snell-Descartes law indicates that the ratio between the sine of the angle in air and the sine of the angle in the block is constant: this is the refractive index of the material. By plotting a graph of the sines, students obtain a straight line whose slope gives this index. The manufacturer does not disclose the expected value, which makes the investigation all the more interesting.
How is the demonstrator mounted?
The manufacturer describes a demonstrator whose back is designed for wall mounting, allowing it to be used vertically in front of a class. However, they do not specify if it is an adhesive surface or a magnetic mount, and we cannot confirm this from the photos. The demonstrator can also be used laying flat on a table, on its black base, which is often the most practical configuration for hands-on activities in small groups or for a demonstration on a desk. Contact us if this point is a deciding factor.
From what grade level can it be used?
The demonstrator accompanies the entire progression in optics. In middle school, it is used to qualitatively observe that light travels in a straight line, reflects, and "breaks" when changing media. In high school, it allows for verifying the Snell-Descartes law and measuring a refractive index. In higher education or scientific outreach, it illustrates total reflection and its applications. For younger users, the experiment should always be conducted under adult supervision, especially if the source used is a laser pointer, which should never be directed toward eyes.
How do I maintain the lens and the disk?
The transparent lens is the most sensitive element: a scratch or a fingerprint diffuses light and blurs the beam. Handle it by the edges and clean it with a clean, dry microfiber cloth, like eyeglass lenses. Avoid abrasive or solvent-based products, which could dull it. The graduated white disk can be dusted with a dry or slightly damp cloth, without scrubbing the graduations. Between uses, store the lens away from dust, for example in a fabric pouch, to preserve the clarity of your demonstrations.
